High Power Aluminum Housed Wirewound Resistor RXLG 120W 200W 300W 800W 1000W 2000W
Features:
- Heat sink, increase heat dissipation performance
- High quality aluminum alloy shell
- High temperature programmed wire
- Non-flame
- Stable performance of high voltage, pulsing load
Application: In dc or low frenquency ac circuits, if used in high frequency circuit, it shall order non-inductive resistor
Standard electrical specifications:
| Characteristics | Limits | |
| Resistance and Tolerance | Resistance nominal | Resistance Tolerance |
| 10Ω＜=R | ±5%(J) |
| 1Ω＞=R | ±10%(K) |
| Temperature Coefficient | ±200PPM/℃max |
| Power Rating Load | △R/R≤±(1%+0.05Ω)(Temperature)350℃max |
| Short Time Load | △R/R≤±(2%+0.05Ω) |
| Insulation Resistance | DC500V 100MΩ Min |
| Dielectric Withstanding Voltage | △R/R≤±(1%+0.05Ω) AC 2000V 1miniute |

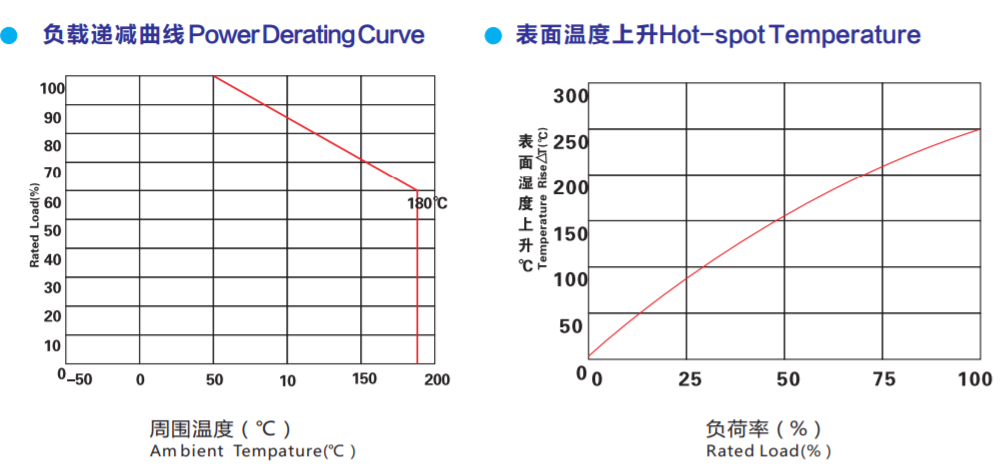

Dimensions
| Rated Power | A±1.5 | B±1.5 | C±1 | D±1 | E±1.5 | F±1.5 |
| 60W | 100 | 72 | 20 | 40 | 5 | 85 |
| 100W | 115 | 87 | 20 | 40 | 5 | 100 |
| 120W | 165 | 135 | 20 | 40 | 5 | 150 |
| 150W | 125 | 90 | 30 | 60 | 5 | 110 |
| 200W | 165 | 125 | 30 | 60 | 5 | 150 |
| 300W | 215 | 375 | 30 | 60 | 5 | 200 |
| 400W | 265 | 225 | 30 | 60 | 5 | 250 |
| 500W | 285 | 245 | 30 | 60 | 5 | 270 |
| 600W | 300 | 260 | 30 | 60 | 5 | 285 |
| 800W | 330 | 290 | 30 | 60 | 5 | 315 |
| 1000W | 300 | 260 | 50 | 107 | 6 | 285 |
| 1200W | 350 | 310 | 50 | 107 | 6 | 335 |
| 1500W | 400 | 360 | 50 | 107 | 6 | 385 |
| 2000W | 450 | 410 | 50 | 107 | 6 | 435 |
| 3000W | 550 | 510 | 50 | 107 | 6 | 535 |
| 4000W | 650 | 610 | 50 | 107 | 6 | 635 |
| 5000W | 750 | 710 | 50 | 107 | 6 | 735 |
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
